Porudct Information

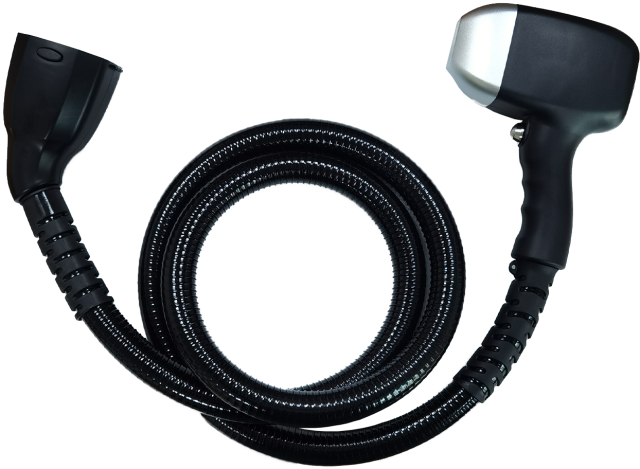

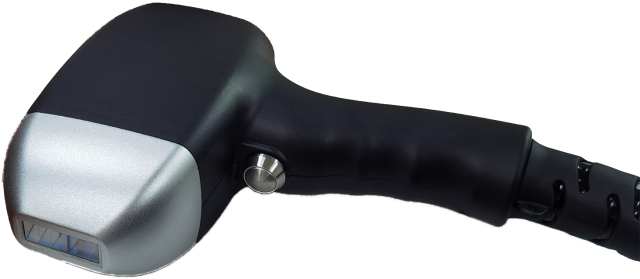

This is the Fourth generation 808 handle which contains 808 semiconductor laser TEC refrigeration system buttons and sockets. It works with 50A/24V diode power supply and is used for hair removal.
Product Features
1.Aluminum parts adopt hard oxidation process.
2.The shell adopts UV painting process.

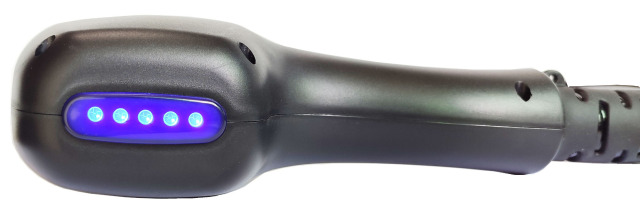

3.Integrated working status indicator. Standby: display 5 Blue breathing lights; Preparation: 1 ~ 5 red lights are always on according to the setting energy; Work: display 1 ~ 5 red breathing lights according to the set energy.
4.Integrated TEC refrigeration system.
5.Integrated water cooling system.
6.Universal plug head.
Technical Specification
|
Product name |
1200W 808 Treatment Handle |
|
Model number |
LHYRH-Laser-1200W |
|
Power |
Max. 1200W |
|
Current |
Max. 100A |
|
Voltage |
Max. 48V |
|
Bar number |
12 Bars |
|
Current duty cycle |
20% |
|
Water temperature |
10-30ºC |
|
Water flow |
>3.5L/Min |
|
Spot size |
10mm*30mm |
Pay Attention
◪ The positive and negative poles of the laser power supply and cooling power supply must connect in a right way
◪ The waterway must be kept unblocked.
◪ Please use pure water for heat dissipation. It is recommended to change the water every two weeks.
◪ Please keep the environment dry and clean.
