808nm 755nm 1064nm 940nm diode laser hand piece for aesthetic laser hair removal equipment

Working Principle of 808nm Diode Laser Hair Removal Handpiece

The 808nm diode laser hair removal handpiece operates on the core principle of selective photothermolysis: it emits precise 808nm near-infrared laser light to target melanin in hair follicles, converting light energy into heat energy to permanently damage hair follicle stem cells. Meanwhile, contact cooling protects the epidermis, enabling safe and painless permanent hair removal.

1.Targeting Melanin

808nm laser light falls at the high absorption peak of melanin, allowing it to be preferentially and heavily absorbed by melanin granules in hair follicles (hair shaft, hair bulb, dermal papilla).

It is minimally absorbed by epidermal cells, hemoglobin and water, causing no damage to surrounding normal tissues.

2.Conversion of Light Energy to Heat Energy

After absorbing laser energy, melanin converts it into heat within a microsecond timescale, rapidly raising the local temperature of hair follicles to 60–75°C and above.

3.Thermal Damage to Hair Follicles

High temperatures cause coagulation and denaturation of follicular proteins, destroying the dermal papilla (blood supply) and bulge stem cells (regenerative capacity), resulting in permanent inactivation and loss of regenerative ability of hair follicles.

 1.Core Components (Optical Path System)

-Diode Laser Array (LD Bar)

The core light source of the handpiece, converting electrical energy into 808nm continuous or pulsed laser light.

-Light Guide Crystal / Microlens Array

Shapes, homogenizes and expands the laser beam to form a uniform large spot.

-Sapphire Crystal Window

Highly light-transmissive, wear-resistant and thermally conductive, with direct skin contact; serving triple functions of light transmission, cooling and protection.


2.Cooling System (Key to Painless Freezing Treatment)

-TEC Thermoelectric Cooler + Water Circulation Cooling

The sapphire window is actively cooled to 1–5°C for pre-cooling and synchronous cooling of the epidermis.

Functions:

-Prevent epidermal burns

-Shrink pores and soothe pain

-Increase energy limit and deepen follicle destruction

Key Features

• 808nm Wavelength Technology: Gold standard wavelength penetrates deep into the hair follicle for optimal melanin absorption and minimal skin damage.
• High Power Options: Choose from 300W, 500W, 600W for tailored treatment intensities.
• Precision Hair Follicle Targeting: Effectively destroys hair follicles without affecting adjacent tissue.
• Fast Treatment Speed: Larger spot size and powerful output enable quicker sessions.
• Comfortable and Safe: Built-in cooling system reduces discomfort and protects skin during treatment.

Applications

• Full-body permanent hair removal
• Face, underarms, arms, legs, bikini area, chest, and back
• Suitable for all skin types and hair colors

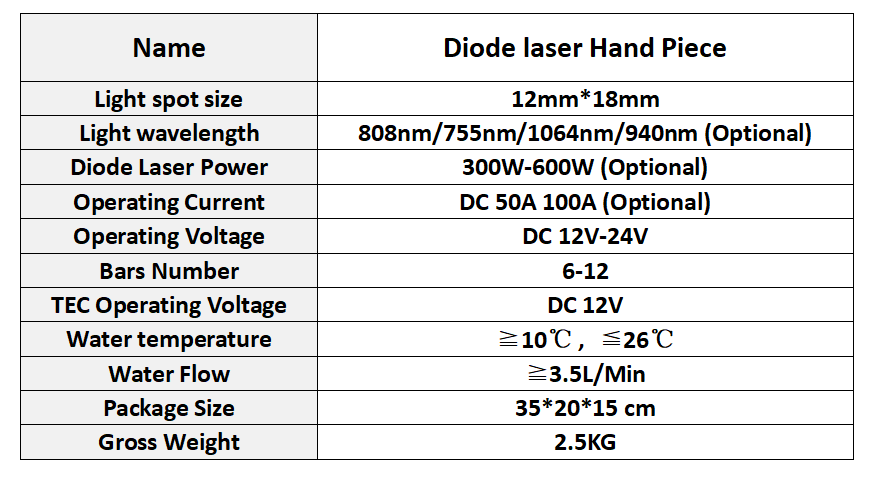

Product Parameters
