Porudct Information

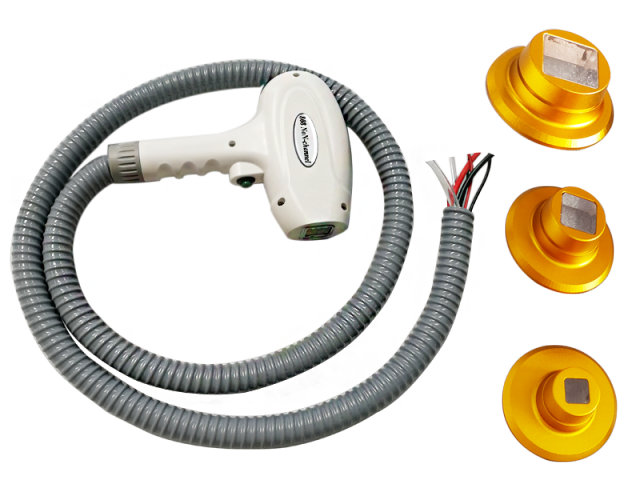

This is the third generation 808 handle which contains 808 semiconductor laser TEC refrigeration system buttons and sockets. It works with 50A/24V diode power supply and is used for hair removal.
Product Features
- Output frequency: 1-10hz
- Output pulse width: 10-400ms
- Bar is from China with good quality

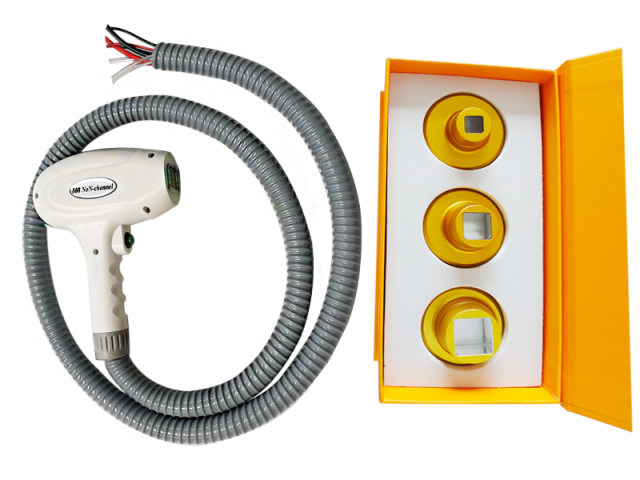

- Changeable spot size Sappire Crystal,easy operation,suitable for different treatment area
Technical Specification
|
Product name |
300W-600W 808 Treatment Handle |
|
Model number |
YJS-Laser-600W |
|
Power |
Max. 300-600W |
|
Current |
Max. 50A |
|
Voltage |
Max. 24V |
|
Bar number |
6-12 Bars |
|
Current duty cycle |
Max. 40% |
|
Water temperature |
25-35ºC |
|
Water flow |
>3.5L/Min |
|
Spot size |
12mm*12mm/15*15mm/10mm*10mm |
Pay Attention
◪ The positive and negative poles of the laser power supply and cooling power supply must connect in a right way
◪ The waterway must be kept unblocked.
◪ Please use pure water for heat dissipation. It is recommended to change the water every two weeks.
◪ Please keep the environment dry and clean.
