Porudct Information

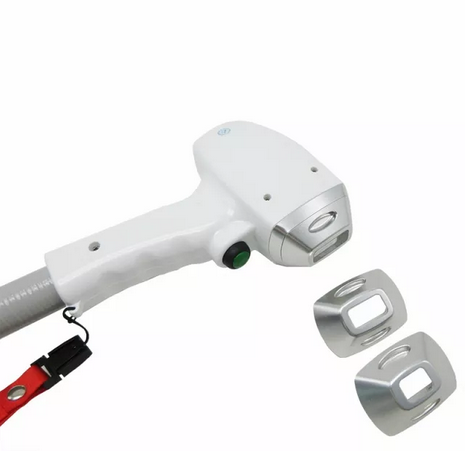

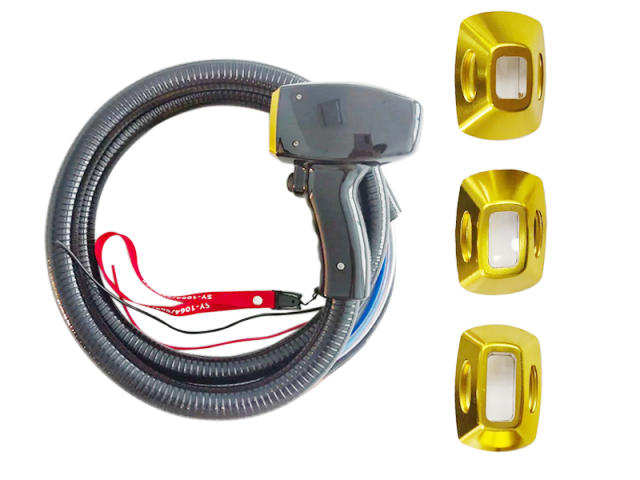

This is the third generation 808 handle which contains 808 semiconductor laser TEC refrigeration system buttons and sockets. It works with 50A/36V diode power supply and is used for hair removal.
Product Features
- Output frequency: 1-10hz
- Output pulse width: 10-400ms
- US import high quality laser bars
- Changeable spot size,easy operation,suitable for different treatment area
Technical Specification
|
Product name |
300W-800W 808 Treatment Handle |
|
Model number |
BQSY-ARM2-800W |
|
Power |
Max. 300-800W |
|
Current |
50A |
|
Voltage |
From 10.6V-30V |
|
Bar number |
6-16 Bars |
|
Current duty cycle |
Max. 40% |
|
Water temperature |
25-35ºC |
|
Water flow |
>3.5L/Min |
|

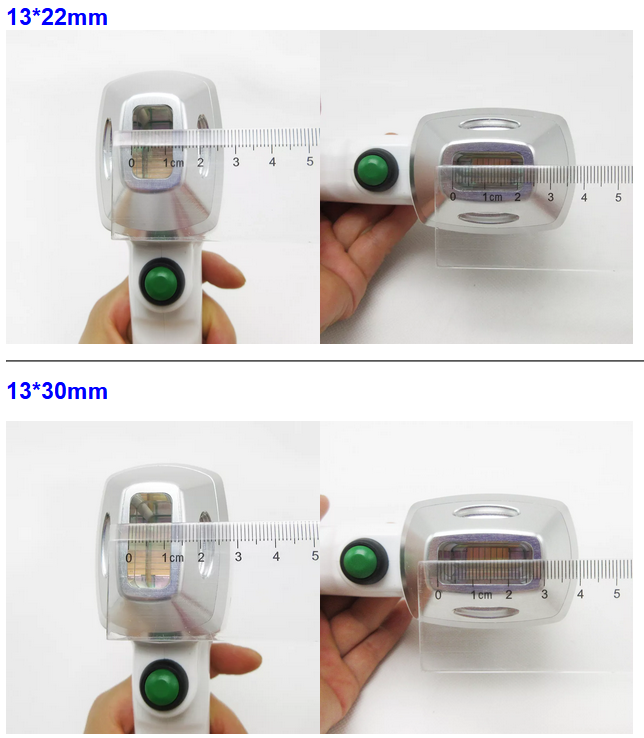

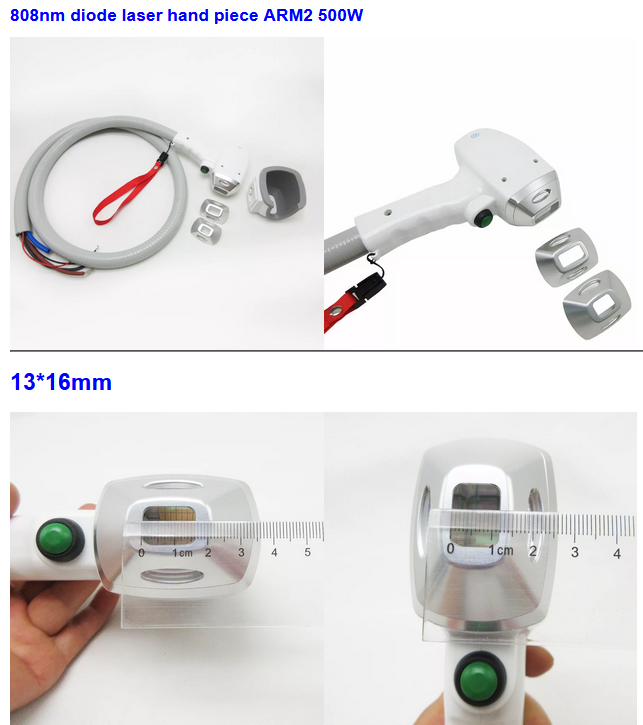

Spot size |
13mm*16mm/13mm*22mm/13mm*30mm |
Pay Attention
◪ The positive and negative poles of the laser power supply and cooling power supply must connect in a right way
◪ The waterway must be kept unblocked.
◪ Please use pure water for heat dissipation. It is recommended to change the water every two weeks.
◪ Please keep the environment dry and clean.
